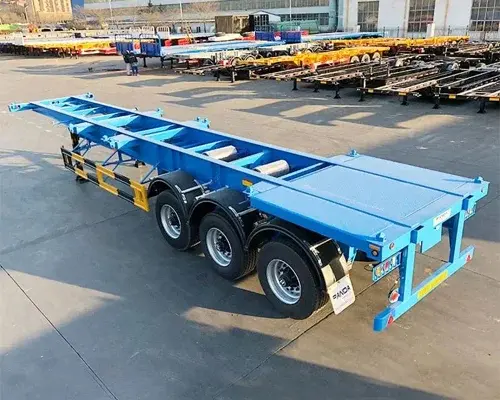

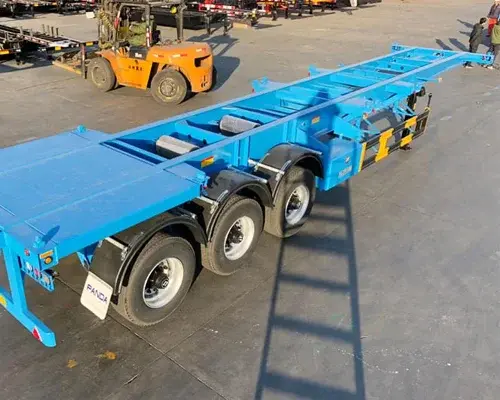

Heavy-Duty Chassis Built for Standard ISO Container Transport
The 40FT Intermodal Container Chassis Trailer is designed to provide a robust, efficient, and road-ready solution for transporting one 40ft or two 20ft ISO containers. Manufactured with high-strength carbon steel and equipped with industry-leading components, this trailer is engineered for high-performance logistics in port operations, shipping yards, rail terminals, and long-haul freight applications.
Product Specifications
Type: 40ft Intermodal container chassis trailer
Application: Transports 1×40ft or 2×20ft standard ISO containers
Main Beam: “I” Section, 500mm height (Q345/T700 steel)
Key Features
Twist Locks: 8 sets ISO standard twist locks, suitable for 20′ and 40′ containers
Axles: 2 or 3 Axles (BPW / FUWA / PDME options)
Suspension: Mechanical / Air / Bogie
Tires: 8/12 pieces of 12R22.5 (Triangle, Linglong, Bridgestone, etc.)
Rims: 9.0-22.5 steel or aluminum (8/12 pieces)
Brake System:
WABCO brake valve
4/6 sets of T30/30 brake chambers
28L or larger air tank
Nylon wire brake pipes
Landing Gear: 28T heavy-duty (JOST / YAHUA)
Kingpin: 2″ (50mm) or 3.5″ (90mm) JOST bolted type
Lighting: 12V / 24V LED waterproof lighting system
Applications
Port terminal container movement
Intermodal logistics operations
Rail yard container transfer
Road freight for long-distance container transport
Compatible with dry, tank, and high cube containers
The 40FT Intermodal Container Chassis is a smart investment for logistics companies that prioritize durability, safety, and versatility. Built to endure the demands of frequent loading and transit, this trailer is ready to streamline your container handling operations.
