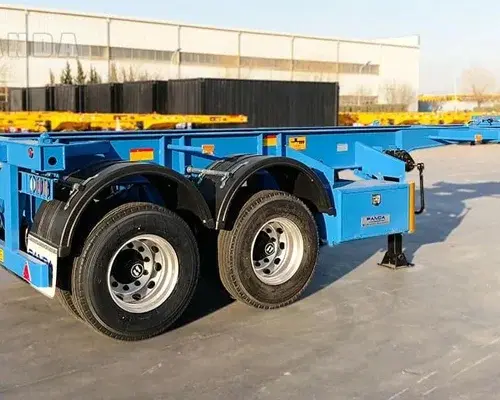

Heavy-Duty Chassis for Efficient Intermodal Container Transport
Upgrade your logistics fleet with our 20FT Container Chassis Trailer, purpose-built to securely transport a single 20ft container or two 10ft containers. Engineered with high-strength carbon steel and designed for durability in the toughest environments, this chassis trailer is the ideal solution for ports, shipyards, intermodal terminals, and long-distance transport routes.
Product Specifications
Type: 20ft container chassis trailer
Application: Compatible with 1×20ft or 2×10ft containers
Material: High-strength carbon steel (Q345/T700)
Dimensions: 7500mm (L) × 2500mm (W) × 1550mm (H)
Height: 1550mm
Width: 2500mm / 8 ft
Weight: 3,700 kg (approx. 8,000 lbs)
Main Beam: “I” Section, 500mm height
Key Features
Twist Locks: 4 to 8 sets of ISO standard locks, compatible with 10′ and 20′ dry or tank containers
Axles: 2 axles (BPW / FUWA / PDME options)
Suspension Options: Mechanical / Air / Bogie
Tires: 8 or 12 units of 12R22.5 (Bridgestone, Triangle, Linglong, etc.)
Rims: 9.0-22.5 steel or aluminum (8 or 12 pieces)

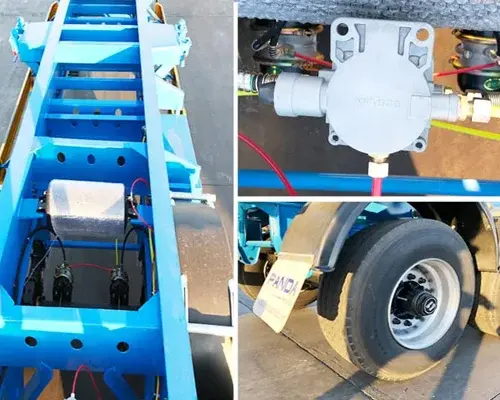

Brake System:
WABCO brake valve
4 or 6 T30/30 brake chambers
28L air tank
Nylon wire brake pipes
Landing Gear: 28T capacity (JOST / YAHUA)
Kingpin: 2″ (50mm) or 3.5″ (90mm) JOST bolted type
Lighting: 12V / 24V LED waterproof lighting system
Applications
Ideal for port and yard container handling
Supports multimodal transport systems
Compatible with dry containers and tank containers
Built for use on bridges, tunnels, and long-haul routes
Whether you’re expanding your fleet or replacing older units, this 20FT container chassis trailer is built for performance, safety, and compliance with ISO container transport standards.
